| الاسم التجاري: | Gonghexiang |
| رقم الطراز: | SD80-R53x2 |
| الـ MOQ: | 1 مجموعة |
| السعر: | قابل للتفاوض |
| شروط الدفع: | ر/ر |
| القدرة على التوريد: | 1 مجموعة/45 أيام عمل |

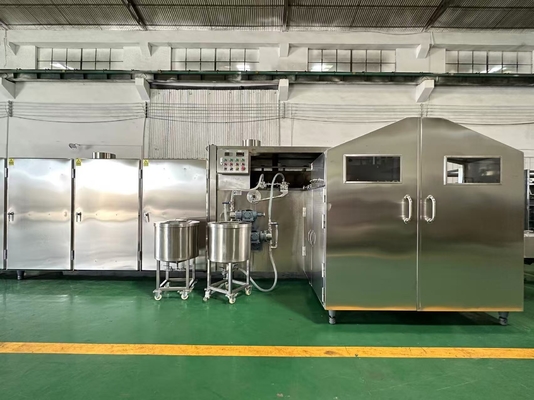

Machine Introduction
Looking for a 5000-6000pcs/hour output Automatic Ice Cream Cone baking machine line? Our SD80-R53x2 Model produces standard size 110mm-115mm sugar cone, for ice cream filling. With stable performance, space-saving design, and full automation, it is widely used in food factories worldwide.
Combined with professional after-sales services such as installation, remote support, and quick spare parts supply, this machine helps businesses stay competitive in the fast-paced food industry.
Machine Model: SD80-R53x2
How the machine make ice cream cone automatically?
⚙️ Automatic batter feeding – the prepared batter is accurately deposited onto heated baking plates.
⚙️ Even baking – the batter is baked into thin, crispy wafer sheets with uniform quality.
⚙️ Automatic rolling – baked sheets are precisely rolled into cone shapes by the rolling system.
⚙️ Smooth demolding & conveying – finished cones are released from the molds and transferred onto the conveyor.
⚙️ Easy packaging – cones are automatically delivered for quick manual collection and packing.
Machine Technical Parameters
| Product name | Sugar cone,ice cream cone making machine line |
| Model Number | SD80-R53x2 |
| Control System | SIEMENS PLC |
| Input Power | 3.37 |
| Voltage | 380v |
| Production Capacity | 5000-6000pcs/hour |
| LPG Consumption | 12-14kg/hour |
| No. of baking plates | 53pcs |
| Standard Configuration | Batter mixer*1,Heat preservation batter bucket*1,5 meter Conveyor,1.5 meter Storage table |
| Warranty | 1 Year |
| Baking plate size | 240mm x 280mm |
| Machine Dimension | 9.8 x 2.1 x 2 (meter) |
| Weight of Machine | 6500kgs |

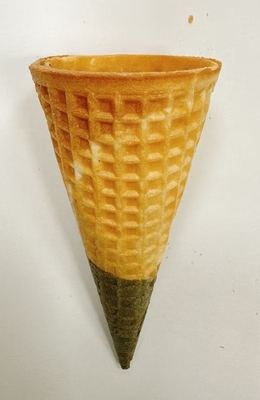

Sugar Cone Specification
| Cone Length | 110-115 (mm) |
| Cone Angle | 20°-24° |
| Cone Diameter | Depends on the length and angle of your cone |
| Cone Color | Both 1-Color and 2-color |
After-Sales Service
✔️ Installation & Training – Professional engineers are available to assist with installation and operator training.
✔️ Warranty Service – All machines come with a standard warranty to cover manufacturing defects.
✔️ Spare Parts Supply – We guarantee timely delivery of spare parts to minimize downtime.
✔️ Technical Support – Our team offers 24/7 online technical assistance and video guidance.
✔️ On-Site Service – If needed, engineers can be dispatched to your factory for troubleshooting and maintenance.
With reliable service and continuous support, we help you keep production running efficiently and worry-free.
Key Points
✅ Standard cone size 110mm-115mm
✅ Fit for both single color cone and two-tone color cone
✅ High capacity up to 6000pcs per hour
✅ Heat-resistant baking plate design for enengy saving
“We are committed to providing reliable equipment and professional service to help our partners grow.”
